PRL1301D 系列
特點介紹:

◆ 600W high power density (Max. 9.3 watts per cubic inch) with 1U height
◆ Design meets IEC/EN/UL60950-1 Latest Edition
◆ Power Factor Corrected to EN61000-3-2 class D
◆ High Quality & Reliable Component Usage

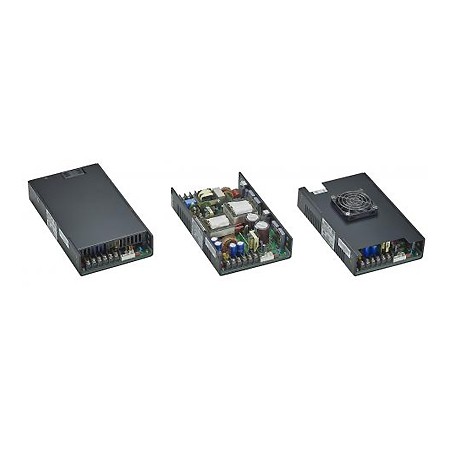

◆ U-Chassis & Enclosed with built-in fan Mechanical Options
◆ 5/ 12/ 24V Dual Output Optional Combinations
◆ Full Range AC Input






Specification Download

Input Voltage  90 ~ 264Vac full range
Ouput Power

*Total combined power of V1 and V2:
600W Max. for PRL1301D-1224 forced air cooling.
500W Max. for other models forced air cooling.

Dimension

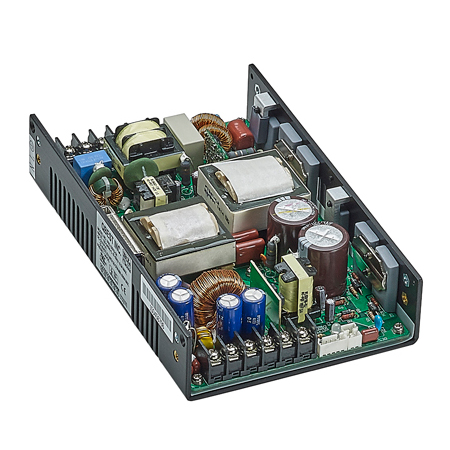

U type: 8(L) x 5(W) x 1.6(H) inches

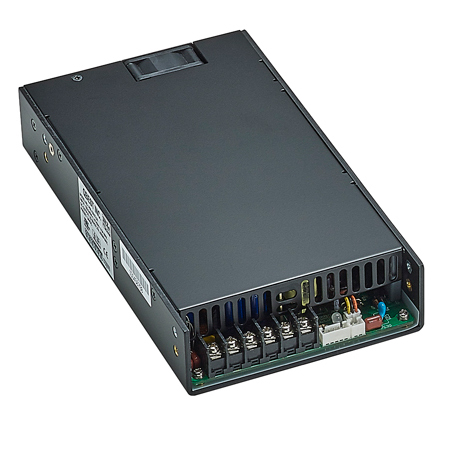

E type: 9(L)☓5(W) ☓1.6(H) inches

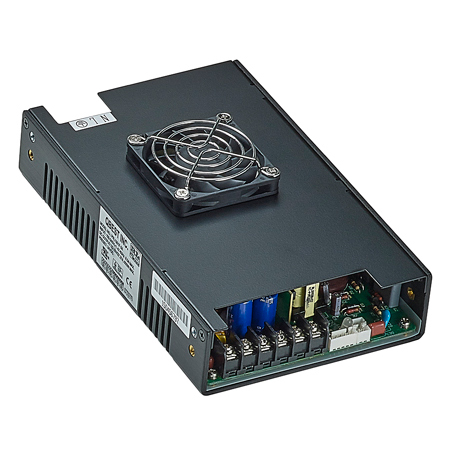

F type: 8(L)☓5(W) ☓ 2 (H) inches

Safety  Design meets IEC/EN/UL60950-1 Latest Edition
Options Molex / Terminal block connector



型號與規格:

Model

Output rating

Total Regulation

Ripple & Noise

Voltage

(Vdc)

With 25CFM min

Without external forced airflow (x=U only)

Current (A)

Power (W) Current (A) Power (W)

PRL1301D-0512

5V

50

500 35 300

+/- 5%

+/-1%

12V

33.33

16.6

+/- 5%

+/-1%

PRL1301D-0524

5V

50

35

+/- 5%

+/-1%

24V

16.67

5.33

+/- 5%

+/-1%

PRL1301D-1224

12V

33.33

600 25 400

+/- 5%

+/-1%

24V

16.67

12.5

+/- 5%

+/-1%
