PRL1301 系列
特點介紹:

◆ 600W high power density
   (Max. 9.3 watts per cubic inch) with 1U height
◆ Design meets IEC/EN/UL60950-1 Latest Edition
◆ Active Power Factor Corrected to EN61000-3-2 class D
◆ Peak Power 900W within 500uS Duty Duration
◆ High Quality & Reliable Component Usage
◆ U-Chassis & Enclosed with built-in fan Mechanical Options
◆ Output Voltages for single output from 3 ~ 60Vdc
◆ Full Range AC Input






Specification Download

Input Voltage  90 ~ 264Vac full range
Ouput Power 300W~600W.  Providing peak power to 900W within 500uS for all models, longer duty duration need contact manufacture.

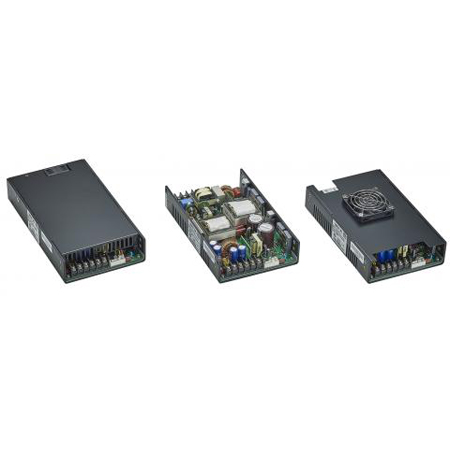

Dimension

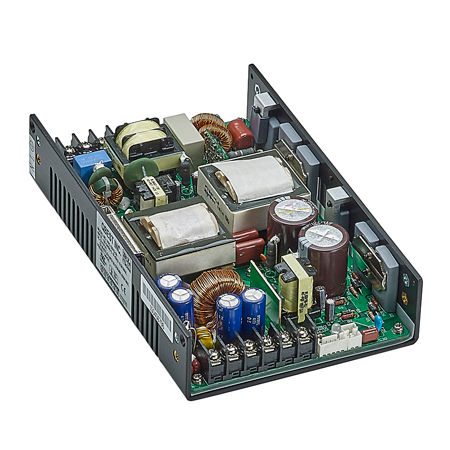

U type: 8(L) x 5(W) x 1.6(H) inches

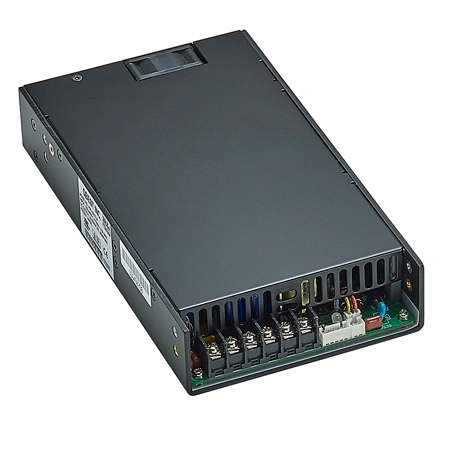

E type: 9(L)☓5(W) ☓1.6(H) inches

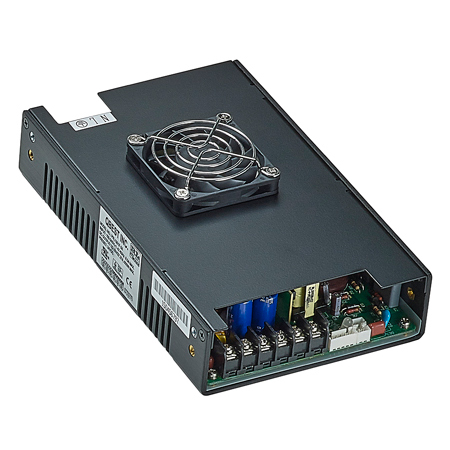

F type: 8(L)☓5(W) ☓ 2 (H) inches

Safety  Design meets IEC/EN/UL60950-1 Latest Edition
Options Molex / Terminal block connector



型號與規格:
Model Output rating

Regulation

Ripple & Noise

Voltage

(Vdc)

With 25CFM min

Without external forced

airflow (x=U only)

Current (A) Power (W) Current (A) Power (W)

PRL1301-05

3– 5V

100

500

48 -

+/- 1%

80mV

PRL1301-10

6– 10V

60

600

30.76 -

+/- 1%

1%

PRL1301-12

11– 13V

54.54

600

30.76 -

+/- 1%

1%

PRL1301-15

13.5– 16V

44.44

600

29.62 400

+/- 1%

1%

PRL1301-18

17 – 21V

35.29

600

23.52 400

+/- 1%

1%

PRL1301-24

22 – 25V

27.27

600

18.18 400

+/- 1%

1%

PRL1301-28

26 – 30V

23.07

600

15.38 400

+/- 1%

1%

PRL1301-36

31 – 40V

19.35

600

12.9 400

+/- 1%

1%

PRL1301-48

41 – 50V

14.63

600

9.75 400

+/- 1%

1%

PRL1301-54

51– 60V

11.76

600

7.84 400

+/- 1%

1%
