RL0603 系列
特點介紹:

◆ Compact 250W with 1U height Power Density: 10.4 watts/cu in.

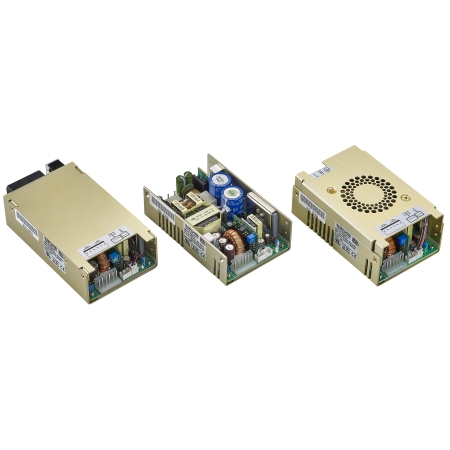

◆ U-Chassis & Enclosed with built-in fan Mechanical Options
◆ Low Leakage Current 500uA @ 240Vac / 300uA @ 120Vac
◆ Providing Peak Power 600W within 500uS duty duration
◆ Variable Fan Speed & Low Acoustical Noise
◆ High Quality & Reliable Component Usage
◆ Approved to UL CUL TUV CB and CE.
◆ AC Input Range Auto-Selectable
◆ Output Voltages from 2 ~ 60Vdc






Specification Download

Input Voltage  100-120/200-240Vac
Output Power RL0603U Series: 250W max. with 16CFM forced air flow offering; 135W max. under air convection.
RL0603F&E Series: 250W max. with Top built-in Fan flow.

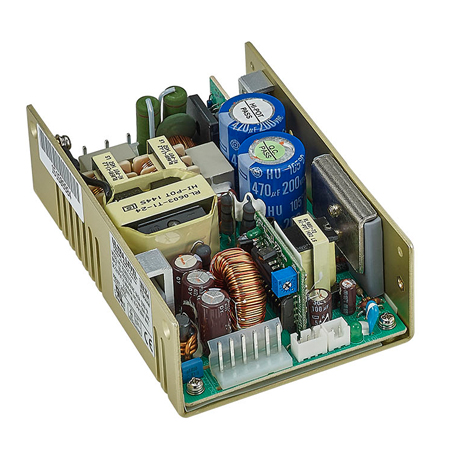

Dimension  RL0603U Series (U-Chassis Type): 5(L) X 3.2(W) X 1.5(H)inches.

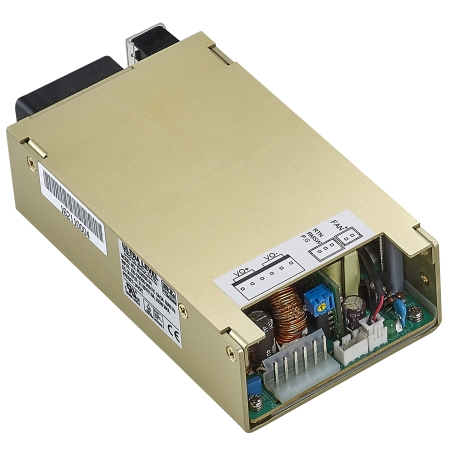

RL0603F Series (Enclosed Type): 5(L) X 3.2(W) X 2(H)inches.

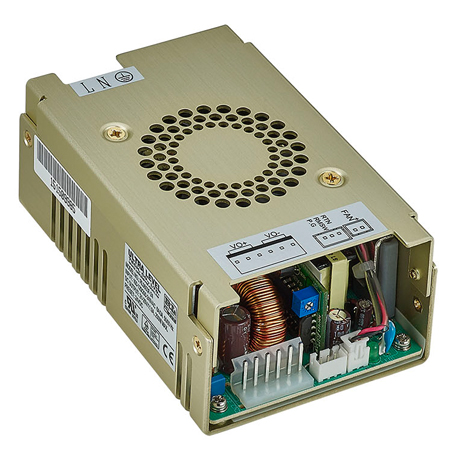

RL0603E Series (Enclosed with end built-in fan):5.39(L) x 3.2(W) x 1.6(H) inches.
Functions Over power protecion, Over current protection, Over temperature protection, Short circuit Protection
Safety  Approved by IEC/EN/UL 62368-1 , EMC EN55032/ EN55035
Options Molex / Terminal block connector


型號與規格:
Model Output Range Preset Voltage Max. Output Power or Current Regulation Ripple & Noise
Type U (with forced air) & F & E Type U (Convection)
RL0603x-05 2 ~ 5V 5V 40A  20A +/- 1% 1%
RL0603x-09 6 ~ 10V 9 V 25A 13.5A +/- 1% 1%
RL0603x-12 11 ~ 13.8V 12 V 250W 135W +/- 1% 1%
RL0603x-15 14 ~ 15.5V 15 V 250W 135W +/- 1% 1%
RL0603x-18 16 ~ 20V 18V 250W 135W +/- 1% 1%
RL0603x-24 21 ~ 26V 24V 250W 135W +/- 1% 1%
RL0603x-28 27 ~ 34V 28V 250W 135W +/- 1% 1%
RL0603x-36 35 ~ 42V 36V 250W 135W +/- 1% 1%
RL0603x-48 43 ~ 50V 48V 250W 135W +/- 1% 1%
RL0603x-54 51 ~ 60V 54V 250W 135W +/- 1% 1%
