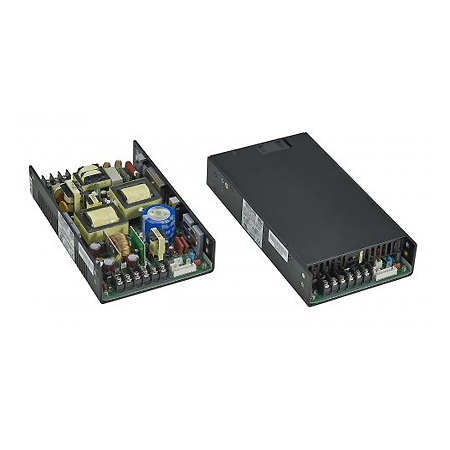

RL0402D 系列
特點介紹:

◆ Safety Approvals to IEC/EN/UL60601-1 3rdEdition
◆ High Quality & Reliable Component Usage
◆ Variable Fan Speed & Low Acoustical Noise
◆  5/ 12/ 24V Dual Output Optional Combinations
◆ U-Chassis Type drive max 250W under air convection
◆ Active Power Factor Corrected to EN61000-3-2 class D



Specification Download

Input Voltage  90 ~ 264Vac full range
Output Power
* Total combined power of V1 and V2:
  400W Max. with 22.95 CFM forced air and 250W convection cooling for RL0402DU1224; 400W for RL0402DE1224 by self-cooling.
  300W Max. with 22.95 CFM forced air and 200W convection cooling for other RL0402DUy; 300W for other RL0402DEy by self-cooling. (y = 0512, 0524)
Dimension

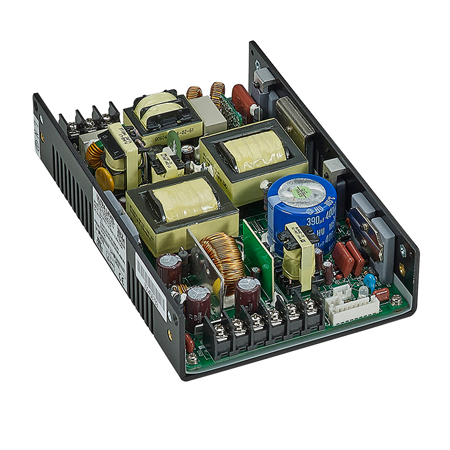

RL0402DU Series (U-Chassis Type): 8(L) x 5(W) x 1.6(H) inches.

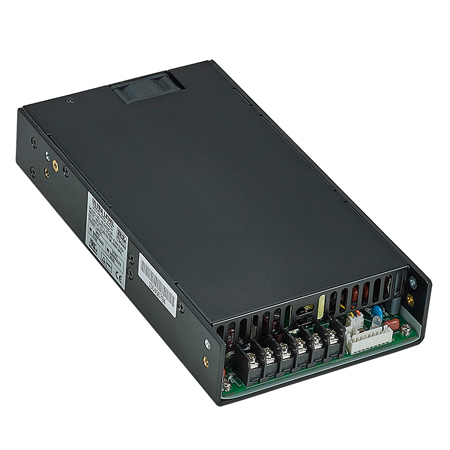

RL0402DE Series (Enclosed Type): 9(L) x 5(W) x 1.6(H) inches.
Functions Over-Power Protection , Short Circuit Protection , Over Voltage Protection , Over-Temperature Protection, Remote On-Off
Safety  Approved by UL/CUL 62368-1, TUV EN62368-1, CB IEC62368-1, EMC EN55032/EN55035
Options Molex / Terminal block connector


型號與規格:

Model Number

Output Voltage

Max. Output Current

Total Regulation

Ripple & Noise

Convection

22.95CFM

RL0402Dx0512

V1: +5V

30A

40A

+/- 5%

+/-1%

V2: +12V

16.7A

25A

+/- 5%

+/-1%

RL0402Dx0524

V1: +5V

30A

40A

+/- 5%

+/-1%

V2: +24V

8.34A

12.5A

+/- 5%

+/-1%

RL0402Dx1224

V1: +12V

16.7A

25A

+/- 5%

+/-1%

V2: +24V

8.33A

12.5A

+/- 5%

+/-1%
