RL0603D series
FEATURES:

◆ Compact 250W with 1U height Power Density: 10.4 watts/cu in.
◆ Low Leakage Current 500uA @ 240Vac / 300uA @ 120Vac
◆ U-Chassis & Enclosed with built-in fan Mechanical Options
◆ 3.3/ 5/ 12/ 24/ 48V Dual Output Optional Combinations
◆ Variable Fan Speed & Low Acoustical Noise
◆ High Quality & Reliable Component Usage
◆ Approved to UL CUL TUV CB and CE.
◆ AC Input Range Auto-Selectable
◆ Output Voltages from 2 ~ 60Vdc



Specification Download

Input Voltage  90-132 / 180-264Vac
Ouput Power
RL0603DU Series: : Max. 250W total combined power of V1 and V2 with min. 16CFM forced air for RL0603Dx-1224 and 200W for other models.
RL0603DF&E Series: Max. 250W total combined power of V1 and V2 for RL0603Dx-1224 and 200W for other models.

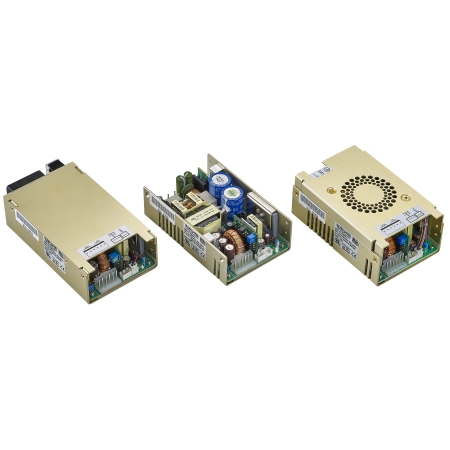

Dimension

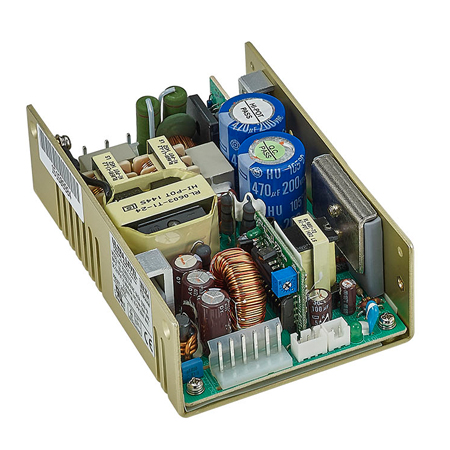

RL0603DU Series (U-Chassis Type): 5(L) x 3.2(W) x 1.5(H) inches.

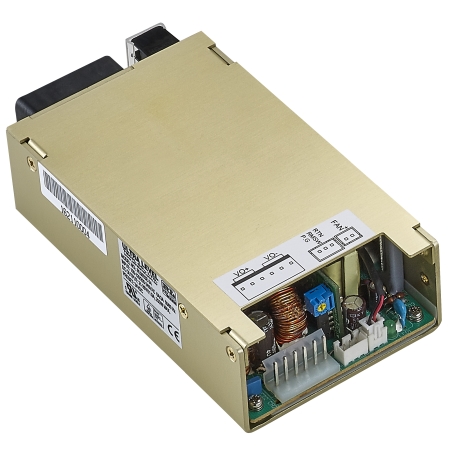

RL0603DF Series (Enclosed Type): 5(L) x 3.2(W) x 2(H) inches.

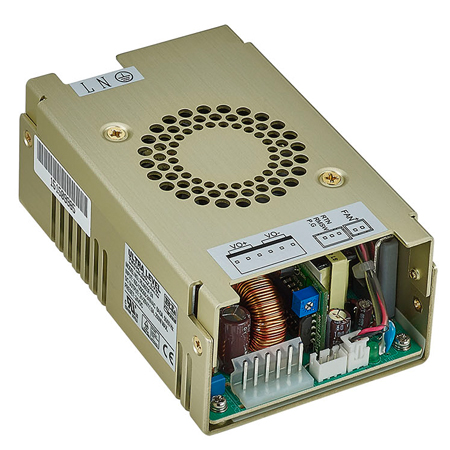

RL0603DE Series (Enclosed with end built-in fan): 5.39(L) x 3.2(W) x 1.6(H) inches.

Functions Over power protecion, Over voltage protection, Over temperature protection, Short circuit protection, Remote on-off
Safety  Approved by UL/CUL 60950-1, TUV EN60950-1, CB IEC60950-1, EMC EN55032/55024
Options Molex / Terminal block connector



Models:

Model

Number



Output

Voltage

Max. Output Current

Regulation



Ripple & Noise



Type U(with forced air) & F & E

Type U (Convection)

RL0603Dx-0312

V1:+3.3V

24A

12A

+/- 5%

 50mV

V2:+12V

12A

7A

+/- 5%

 1%

RL0603Dx-0324

V1:+3.3V

24A

12A

+/- 5%

50mV

V2:+24V

6A

4A

+/- 5%

 1%

RL0603Dx-0512

V1:+5V

24A

12A

+/- 5%

 1%

V2:+12V

12A

7A

+/- 5%

 1%

RL0603Dx-0524

V1:+5V

24A

12A

+/- 5%

 1%

V2:+24V

6A

4A

+/- 5%

 1%

RL0603Dx-0548

V1:+5V

24A

12A

+/- 5%

 1%

V2:+48V

3A

2A

+/- 5%

 1%

RL0603Dx-1224

V1:+12V

12A

7A

+/- 5%

 1%

V2:+24V

6A

4A

+/- 5%

 1%
