PRL0801 series
FEATURES:

◆ Compact 300W with 1U height Power Density: 12.5 watts/cu in
◆ Active Power Factor Corrected to EN61000-3-2 Class D
◆ Built-in Remote On-Off, Power Good, Fan Fail Alarm
◆ Peak Power 600W within 500uS Duty Duration
◆ Variable Fan Speed & Low Acoustical Noise
◆ High Quality & Reliable Component Usage
◆ Output Voltages from 2 ~ 60Vdc

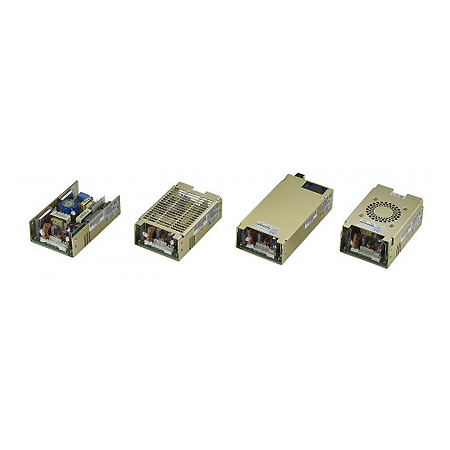

◆ 4 - Mechanical Options
◆ Full Range AC Input






Specification Download

Input Voltage  90 ~ 264Vac full range
Ouput Power

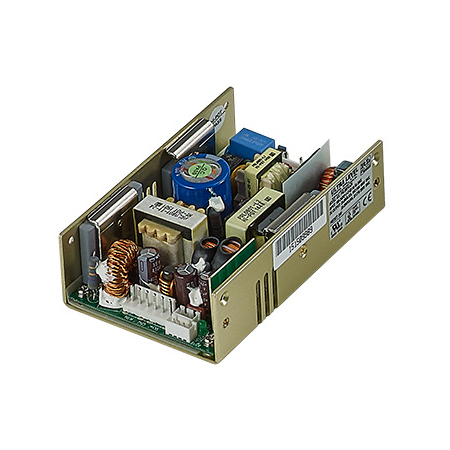

* U Type: U-Chassis @300W max. with min. 25CFM forced airflow; 150W under convection cooling (Option: vented top cover).

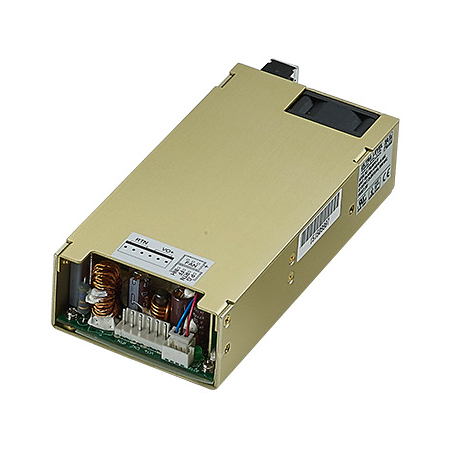

* E Type: Enclosed with rear side built-in fan @300W max.
* F Type: U-Chassis  with top built-in fan @300W max.
Dimension
U Type (U-Chassis only): 5(L) x 3.2(W) x 1.5(H) inches

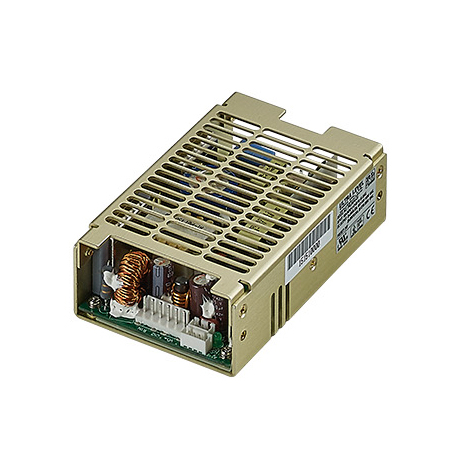

U Type (U-Chassis with Top Cover): 5(L) x 3.2(W) x 1.66(H) inches
F Type (U-Chassis with Top built-in Fan): 5(L) x 3.2(W) x 2(H) inches
E Type (Enclosed with Rear Side built-in Fan): 6.5(L) x 3.2(W) x 1.6(H)inches
Functions Over-Power Protection , Short Circuit Protection , Over Voltage Protection , Over-Temperature Protection
Safety  Approved by UL/CUL 60950-1, TUV EN60950-1, CB IEC60950-1, EMC EN55032/55024
Options Molex / Terminal block connector



Models:

Model

Output Range

Preset Voltage

Max. Output Power or Current

Regulation

Ripple & Noise

Type U & E &
F (forced air)

Type U (Convection)

PRL0801x-05

2 ~ 5V

5V

42A

20A

+/- 1%

1%

PRL0801x-09

7 ~ 11V

9 V

27.27A

13.64A

+/- 1%

1%

PRL0801x-12

12 ~ 13.8V

12 V

300W

150W

+/- 1%

1%

PRL0801x-15

14 ~ 16V

15 V

300W

150W

+/- 1%

1%

PRL0801x-18

17 ~ 22V

18V

300W

150W

+/- 1%

1%

PRL0801x-24

23 ~ 28V

24V

300W

150W

+/- 1%

1%

PRL0801x-30

29~ 34V

30V

300W

150W

+/- 1%

1%

PRL0801x-36

35 ~ 43V

36V

300W

150W

+/- 1%

1%

PRL0801x-48

44 ~ 52V

48V

300W

150W

+/- 1%

1%

PRL0801x-54

53 ~ 60V

54V

300W

150W

+/- 1%

1%
