PRL0602DN series
FEATURES:

◆ Compact 400W with 1U height Power Density: 11.11 watts/cu in
◆ Built-in Remote On-Off, Power Good, Fan Fail Alarm
◆ 5/ 12/ 24/ 48V Dual Output Optional Combinations
◆ Power Factor Corrected to EN61000-3-2 class D
◆ Variable Fan Speed & Low Acoustical Noise
◆ High Quality & Reliable Component Usage
◆ Approved to UL CUL TUV CB and CE

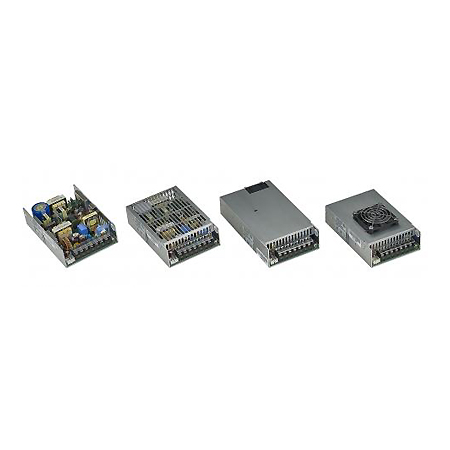

◆ 4 - Mechanical Options
◆ Full Range AC Input






Specification Download

Input Voltage  90 ~ 264Vac full range
Ouput Power
For models U chassis type which need external forced airflow min. 26.84 CFM to achieve maximum power.
Type U, E & F with forced air cooling: Total combined power of V1 and V2 not to exceed 400W for PRL0602DNx-1224 and 320W for other models.
Type U & C with convection cooling: Total combined power of V1 and V2 not to exceed 200W for RL0602DNx-1224 and 180W for other models.
Dimension

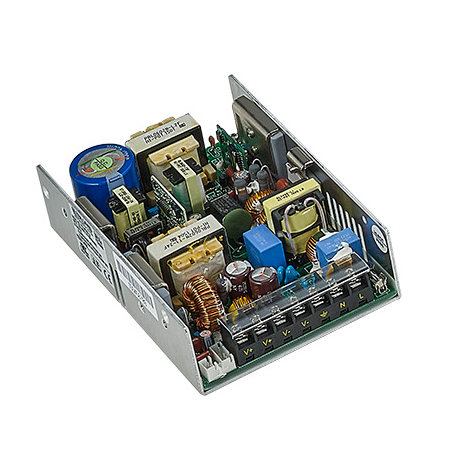

U Type (U-Chassis only): 6(L) x 4(W) x 1.5(H) inches

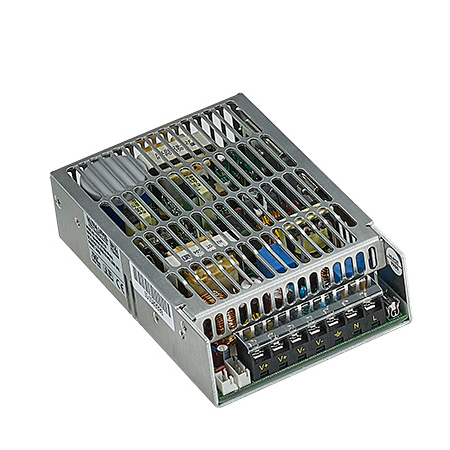

C Type (U-Chassis with Top Cover): 6(L) x 4(W) x 1.57(H) inches.

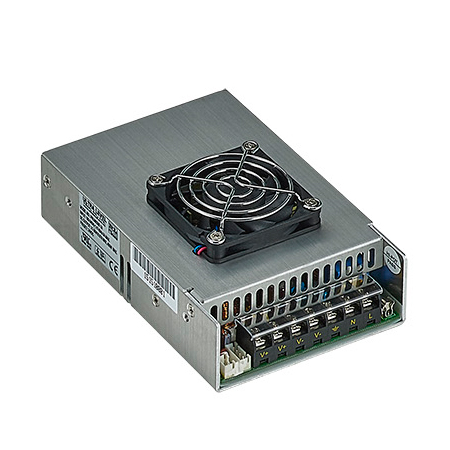

F Type (U-Chassis with Top built-in Fan): 6(L) x 4(W) x 2(H)inches

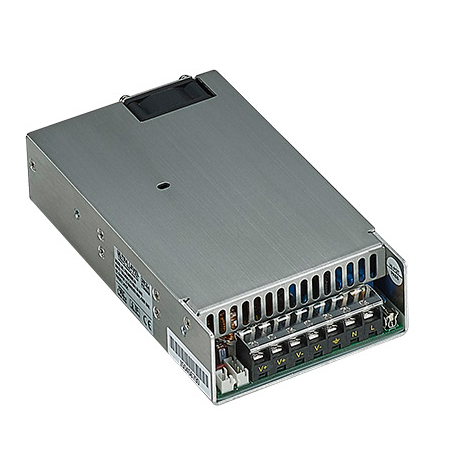

E Type (Enclosed with Rear Side built-in Fan): 7(L) x 4(W) x 1.6(H) inches.
Functions Over-Power Protection , Short Circuit Protection , Over Voltage Protection , Over-Temperature Protection
Safety  Approved by UL/CUL 60950-1, TUV EN60950-1, CB IEC60950-1, EMC EN55032/55024
Options Molex / Terminal block connector



Models:

Model

Number

Output

Voltage

Max. Output Current

Regulation

Ripple & Noise

Type U & E & F (force air)

Type U, C (Convection)

PRL0602DNx-0512

V1:+5V

30A

15A

+/- 5%

1%

V2:+12V

20.83A

13.33A

+/- 5%

1%

PRL0602DNx-0524

V1:+5V

30A

15A

+/- 5%

1%

V2:+24V

10.42A

6.67A

+/- 5%

1%

PRL0602DNx-0548

V1:+5V

30A

15A

+/- 5%

1%

V2:+48V

5.21A

3.33A

+/- 5%

1%

PRL0602DNx-1224

V1:+12V

20.83A

12.5A

+/- 5%

1%

V2:+24V

10.42A

8.33A

+/- 5%

1%
