Power supplies target applications that require high power for a short-duration

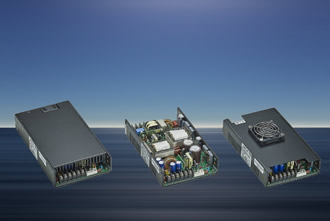

The PRL1301 devices are available in u-frame, end fan cover and top fan cover versions. Featuring universal AC input with active PFC, the power supplies offer a peak power 900W within 500µs duty duration. The series is suitable for applications that require high power for a short-duration.

The devices are offered with over voltage, over load, and short circuit protections. Control features including remote sense, remote on/off, power fail, voltage monitoring, and an auxiliary 12V fan output. The power supplies operate across a temperature range of 0 to +50, with derating up to +70°C.

The PRL1301 series is approved to ITE standards of UL/CUL/EN/IEC60950-1, 2nd Edition, Am. 2 and bear the CE Mark to low-voltage directive.
